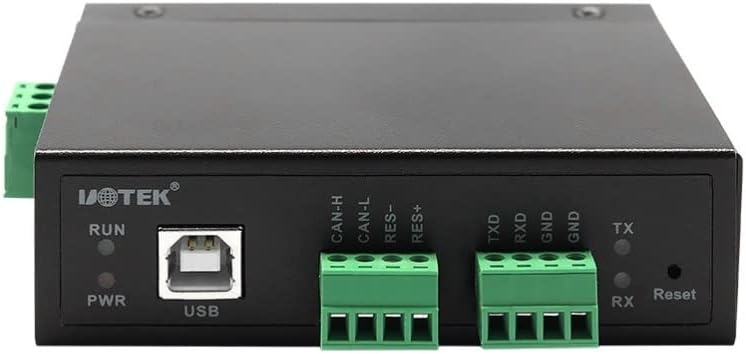

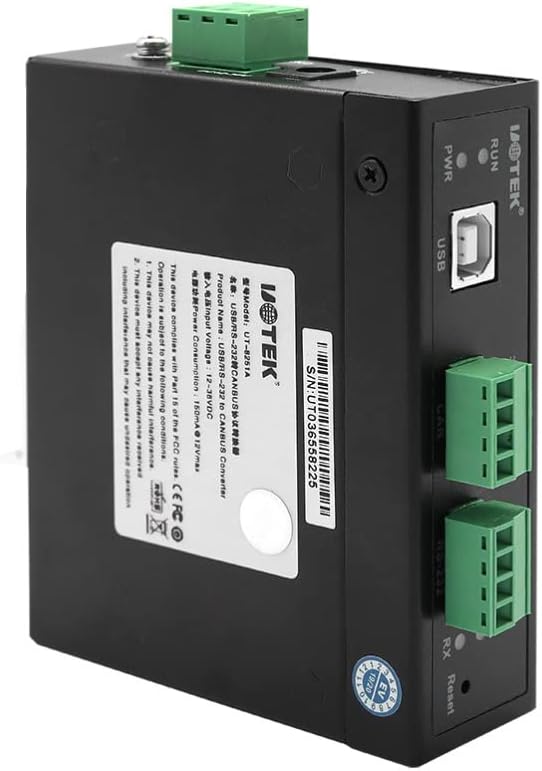

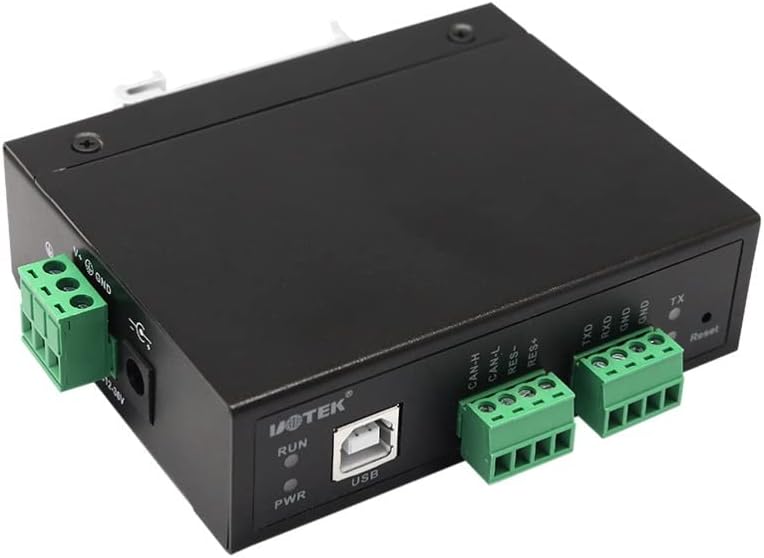

USB 2.0 to CAN Bus Converter S480279
USB 2.0 to CAN Bus Converter S480279
Converts USB 2.0 protocol to CAN BUS protocol ● One USB port, one CAN channel ● Supports CAN controller status monitored
Supports CAN 2.0A & CAN 2.0B protocol, standard frame & extended frame ● Supports bidirectional transmission, CAN transmitting & receiving ● Supports data frame, remote frame format
With adjustable baudrate of 5kbps-1Mbps for CAN controller by software setting ● CAN BUS interface adopts optics isolation, DC-DC power isolation ● CAN BUS max flow: 4,000 frame/s
CAN internal receiving buffer zone capacity: 600Messages (7,800 bytes) ● Dual buffer structure on internal sending, with buffer of 800Messages
USB powered, no need external power ● Isolated insulative voltage, 2,500Vrms ● Operating temperature: -20~85℃ ● Operating current: <100mA ● Dimension: 112.5mm x 64mm x 25mm, Aluminum
UT-8251 is a USB to CAN converter. It adopts USB 2.0 protocol; there is no need for user to install USB drive, plug & play. User connects the converter with CAN BUS; this makes the PC convenient to debug the field BUS device for data collection and control.
UT-8251 design fully considers the bad electronic environment of field BUS. CAN BUS circuit use independent DC-DC power module for optoelectronic isolation. The strong anti-interference function greatly improves the reliability in poor environment. It adopts high-capacity data buffer technology and real-time transmission technology to get high data throughput rate. UT-8251 is widely used in lab, industrial control, smart building, and automobile for data collection, transmission and control.
UTEK PC software is designed for CAN BUS equipment data receiving and transmitting. You can also use UTEK DLL dynamic connection base to program your own software, or integrated it into current software. There is no need for user to understand USB protocol to control the CAN BUS by directly using the interface function.
